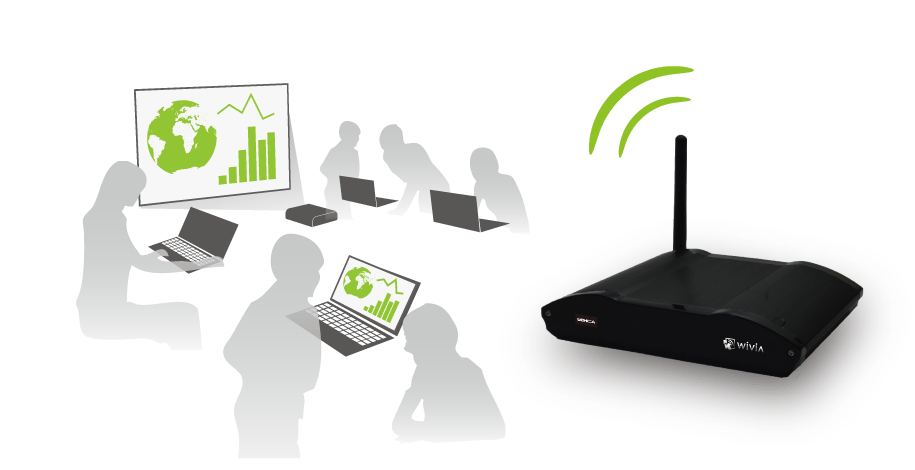

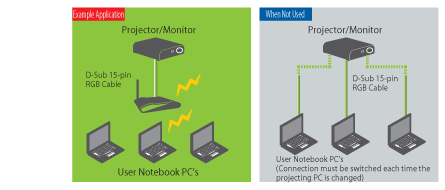

wivia connects with notebook PC¡¯s by wireless network. Installation is
simple because there are no cables. There is no need for RGB cables
between the PC and the display device, so there is no need to
disconnect/reconnect cables each time the projecting computer is
changed, resulting in stress-free usage. |
 |
Old projectors can also be connected and used with the device, so
there is no need to buy a new projector. Appliance assets can be
utilised effectively. |
 |
 |
 |
By connecting the wivia unit to the wired
network, it is possible to project to several
screens simultaneously from one notebook
PC. Previously, this was only possible by
making use of separate equipment like
splitters.
By using wivia, it is also possible to
simultaneously display text files and videos
from a single PC.
If connected to the internal LAN, it is possible
to project data from the server or the internet
browser during a meeting.

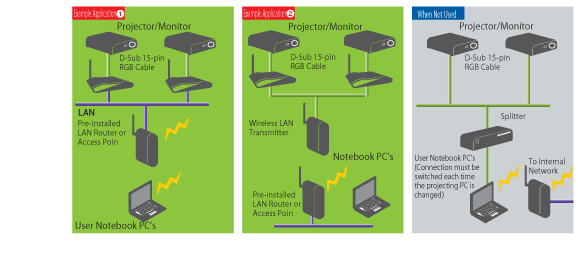

If you would like to connect wivia to the internal
LAN but wiring is a problem, you can add a
wireless LAN transmitter as a LAN terminal
connection as in Example Application¢Ú,
allowing you to use wivia without adding any
physical wiring |
 |
Old projectors can also be connected and used
with the device, so there is no need to buy a new
projector. Appliance assets can be utilised
effectively. |
|
 |
 |
Multi-OS Compatibility£º
|
wivia enables trouble-free use, even with a range of different operating systems. |
 |
Compatible OS¡¯s: Windows 2000, Windows XP, Windows Vista, Mac OS X, Windows Mobile.
*Compatible with either Mac OS or Windows Mobile |
|
|
 |
|
 |
|
| OS |
|
Windows 2000/Windows XP/Windows Vista |
|
|
| Environment Settings |
Specialised Software / Web Browser |
|
|
|
| |
 |
|
SVGA(800¡Á600)/XGA(1027¡Á768)/SXGA(1280¡Á1024)/WXGA(1280¡Á
768)/WSXGA(1440¡Á900,1600¡Á1024)/UXGA(1600¡Á1200)/WUXGA(1920
¡Á1200)
/QXGA(2048¡Á1536)Windows 2000/Windows XP/Windows Vista |
|
|
|
| |
 |
|
|
|
| Power Source (AC Adapter) |
Input: 5V DC Input 2.5A |
|
|
| External Dimensions (mm) |
117mm(W)¡Á140mm(D)¡Á27mm(H) |
|
|
Operating Temperature
/Storage Temperature |
0¡«40¡æ/-10¡«60¡æ |
|
|
Operating Humidity
/Storage Humidity |
90% or less / 80% or less (provided no condensation) |
|
|
| Unit Weight |
273g |
|
|
| Warranty Period |
One year |
|
|
|
| |
|
|
| Model |
|
IEEE802.11b/g 2.4GHz |
|
|
| Transmitting Distanc |
up to 100m (without obstructions) |
|
|
Maximum Transmission
Speed |
54Mbps |
|
|
| Security |
IEEE Standard 64/128 bit WEP |
|
|
|
| |
 |
|
| Model |
|
IEEE802.3(10BASE-T)/IEEE 802.3u (10BASE-TX) |
|
|
| Port No./Connector |
RJ-45 Connector ¡Á1 |
|
|
| Maximum Transmission Speed |
10/100Mbps (Auto-negotiation) |
|
|
|
| |
 |
|
| Resolution |
|
SVGA (800¡Á600) / XGA (1024¡Á768) / WXGA (1280¡Á768) |
|
|
| Interface |
15-pin VGA¡Á1 |
|
|
| Maximum Transmission Speed |
Stereo mini-plug |
|
|
|
| |
|
 |
| |
wivia may be used with a display device of any type or model.
There is no need for a wireless LAN compatible projector, or
specialised software.
Connection method: D-sub 15-pin analogue RGB connection |
